CIRCULAR SAW CLEANING SYSTEM USING METAL BRISTLE BRUSHES
SUITABLE FOR CIRCULAR SAWS WITH TUNGSTEN CARBIDE, HSS, OR CIRCULAR BLADES
HIGHLIGHTS
- Circular saw cleaning using metal bristle brushes
- The mechanical cleaning system eliminates the need for polluting detergents, solving the problem of detergent waste, for example, in ultrasonic cleaning systems.
- Suitable for circular saws with tungsten carbide, HSS, or circular blades.
- Dry or wet cleaning
- Programmable work cycle from 1 to 10 minutes
- For saws from ø250 to ø800 mm
- Compact design and fully enclosed cabinet

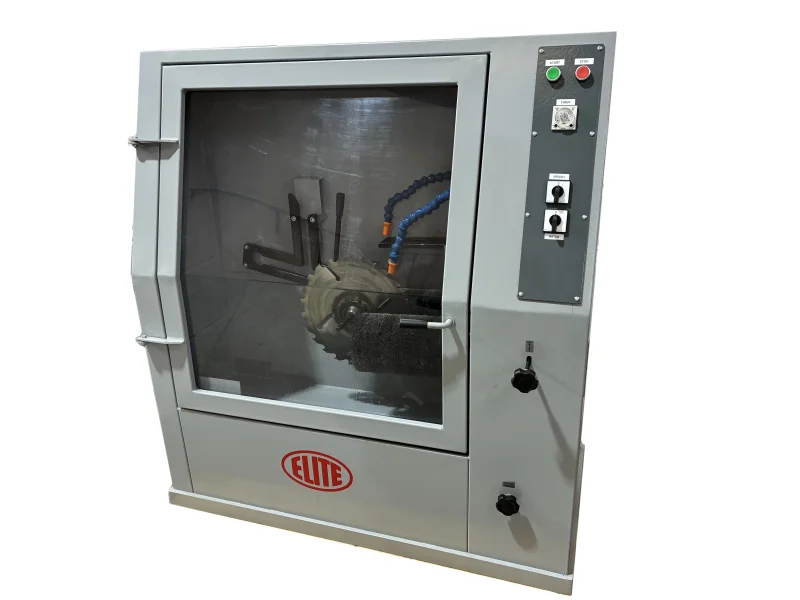

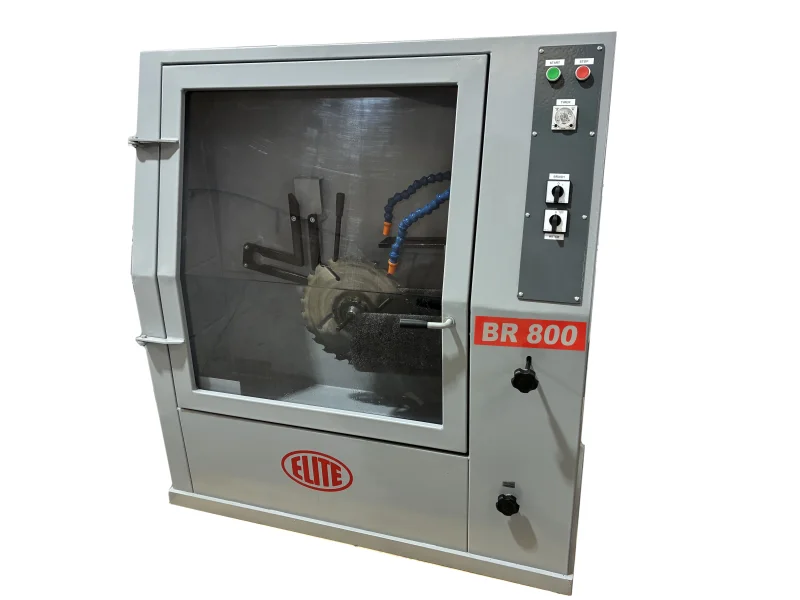

ELITE BR 800. MACHINE BASIS.

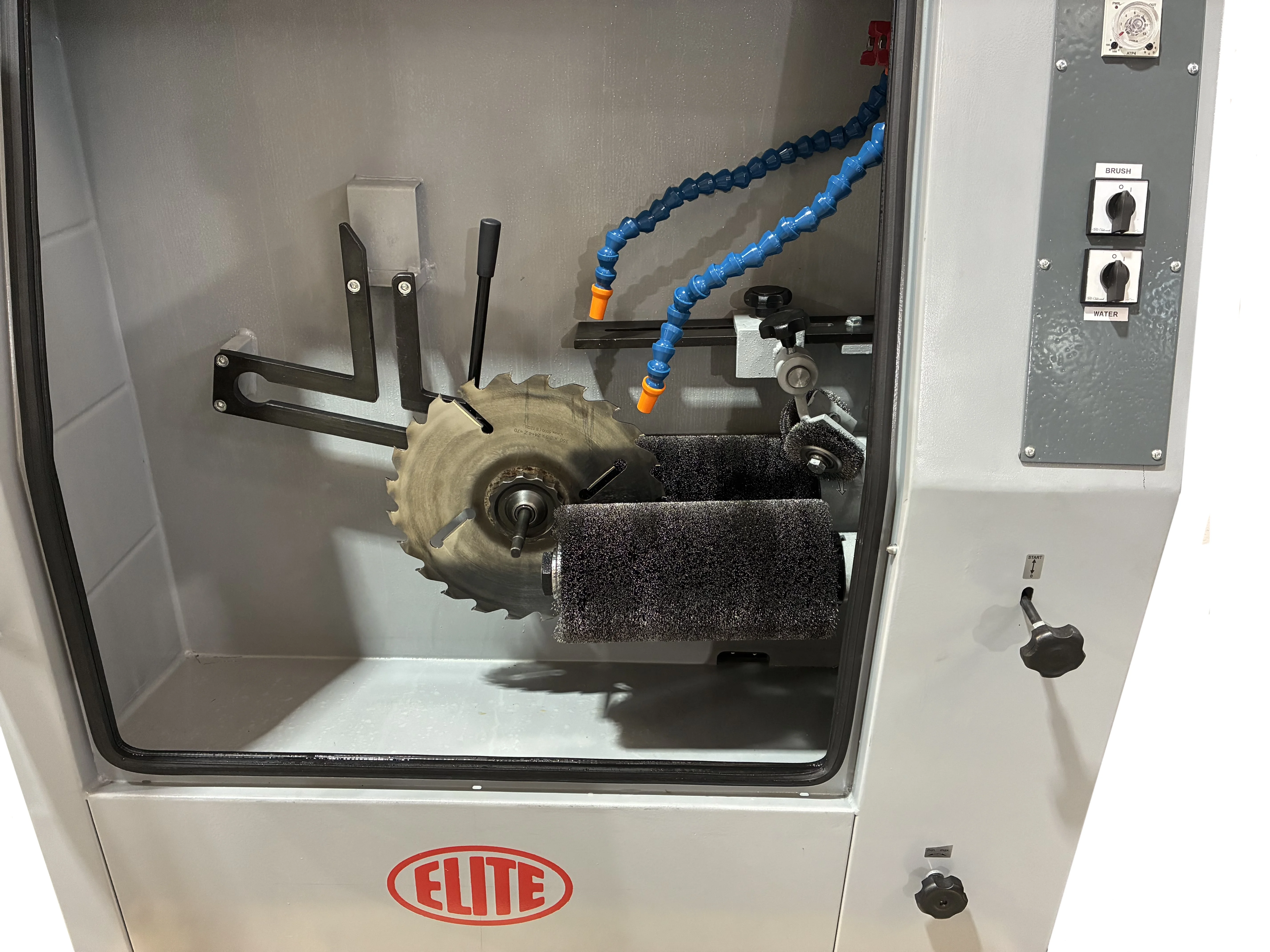

Circular saw cleaning system using metal bristle brushes that clean the side of the saw blade via a motor.
It also incorporates two additional bristle brushes for cleaning the back of the saw teeth.
Suitable for circular saws with tungsten carbide teeth, as well as HSS saws or circular blades. For saws with diameters from ø250 to ø800 mm.
Equipped with a cooling system to select dry or wet cleaning.
Programmable work cycle from 1 to 10 minutes with automatic machine stop.
Quick saw blade loading system with a set of adapter rings for different saw hole diameters.
Fully enclosed cabinet with a safety device that stops the machine when the door is opened.
Compact design to take up minimal space in the workshop.
ELITE BR 800. HOW IT WORKS
Machine overview
ELITE BR 800. SPECIFICATIONS
| TECHNICAL DATA | BR800 |
|---|---|
| Tool dimensions | From ø250 to ø800 mm |
| Cleaning with motor driven side brushes | Dry or with water |
| Two additional teeth brushes | To remove the tooth sides dirt |
| Pump | 80 l/min |
| Water tank capacity | 50 liters |
| Connection | 400V or 220V 3 Ph. 50/60 Hz. |
| AVAILABLE VERSIONS | ||
|---|---|---|
| Model | Net Size | Packing Weight |
| BR800 | 1300 x 600 x 1200 mm. | 250 Kg. |
DOWNLOAD LEAFLET
REQUEST INFORMATION
MACHINES COMPARISONS AT A GLANCE
| MODEL | CLEANING SYSTEM | MAX. Ø CAPACITY | CLEANING AGENT |
|---|---|---|---|
| BR 800 | Active brush cleaning | From ø250 to ø800 mm. | Water with detergent, emulsion oil or pure oil |
| LAVAmaq 1150 | Hot water driven by pressure jet | Up to ø1100 mm. | Biodegradable with tool corrosion protection |
| LAVAmaq 910 | Hot water driven by pressure jet | Up to ø900 mm. | Biodegradable with tool corrosion protection |
| LAVAmaq 780 | Hot water driven by pressure jet | Up to ø750 | Biodegradable with tool corrosion protection |
