BAND SAW SHARPENING MACHINE FOR CURVED AND TRIANGULAR TOOTH SHAPES.
BAND SAWS FROM 10 UP TO 60 MM WIDE (0,4" TO 2,36")
HIGHLIGHTS
- Three different cams for selecting the tooth shape: triangular, curved small and curved big. Two spaces free for special cams.
- Sharpening of the curved tooth profile (Woodmizer)
- Possibility of selecting the type of sharpening: only the front of the tooth or front and back.
- Independent regulation of the pitch of the tooth.
- Independent regulation of the depth of the grinding wheel and the entry/exit speed.
- Vertical system for placing the band saw, saving space.
- Includes coolant system for wet grinding

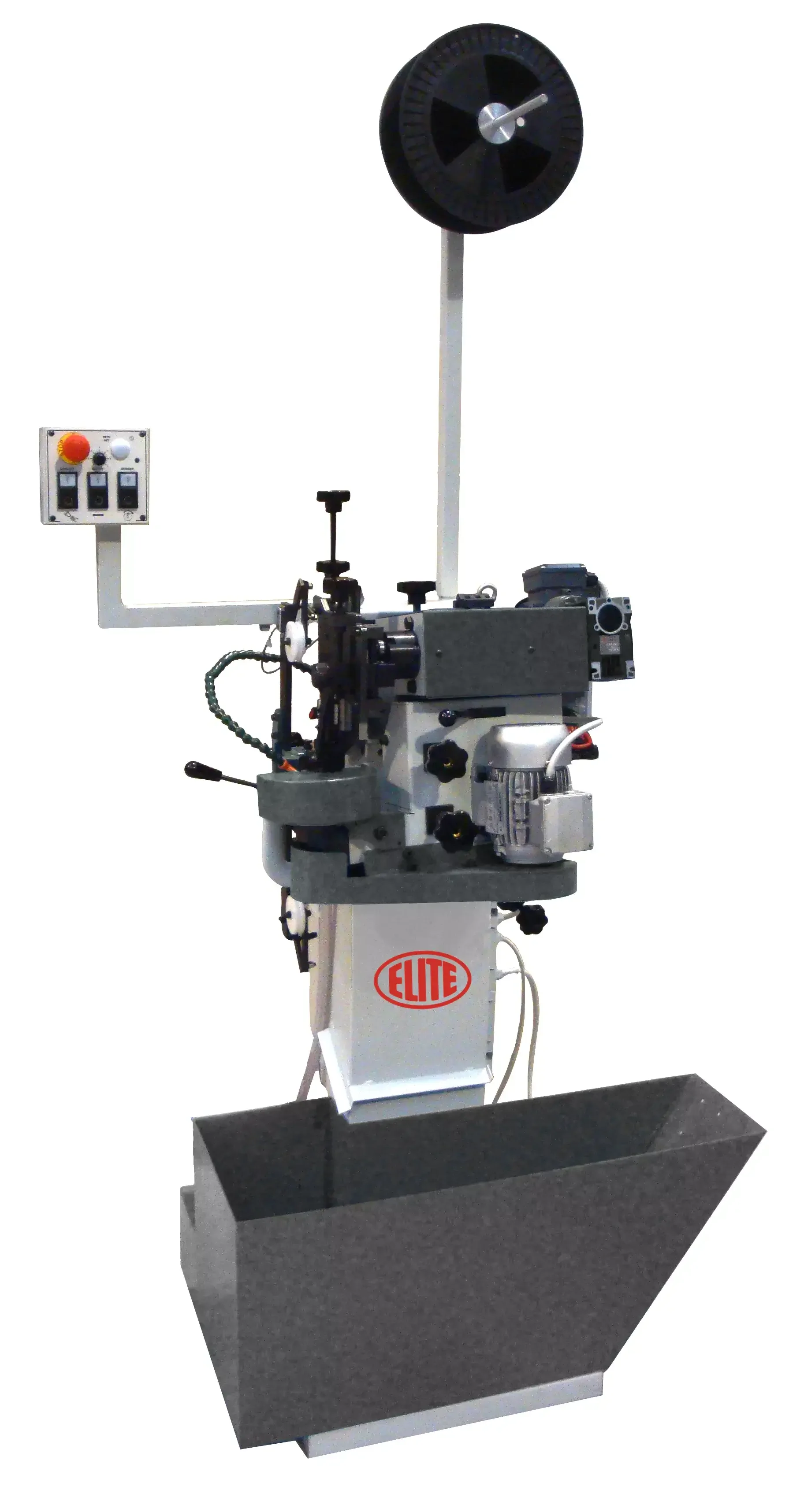

ELITE SC 3. THE CONCEPT.
The ELITE model SC 3 is our band saw sharpening machine multi-profile. It can sharpen a lot of different type of teeth shape allowing the independent adjustments of the feed pitch, of the grinding wheel working depth and of the entry/exit speed. It has different cams for different profiles.
The speed of working is adjustable by VFD (variable-frequency-drive) and it uses a CBN grinding wheel for perfect sharpening operations.
Its vertical design, solid and reliable, was studied to require little space and bear high workloads.
The SC 3 includes a refrigeration equipment.
ELITE SC 3. HOW IT WORKS
Frontal control Panel
Frontal control panel with only the necessary buttons for very easy handling
Sharpening of tooth profiles: triangular and Woodmizer
ACCESSORIES INCLUDED
- Working with variable speed regulator from 10 to 60 teeth/minute
- Complete coolant system included: pump, water tray, hoses and tubes
ELITE SC 3. SPECIFICATIONS
| TECHNICAL DATA | ELITE SC 3 |
|---|---|
| Sharpening angle | From 0º to + 18º |
| Teeth profile | Triangular, triangular spaced and Woodmizer |
| Band saw thickness (min-max) | 0.5 - 1.5 mm (0.019” - 0.059”) |
| Sharpening pitch (min-max) | 5 - 26 mm (0.19" - 0.10") |
| Sharpening speed | 14 - 56 teeth/minute |
| Feeding motor power | 1 x 0.18 kW |
| Grinding wheel motor power | 1 x 0.25 kW |
| Wheel grinder diameter (Ø Ext x Int x Thickness): | 150 x 20 x 6 mm |
| Net weight | 130 kg |
| Machine dimensions | 800 x 1300 x 2600 mm |
| AVAILABLE VERSIONS | |
|---|---|
| Model | Packing Size |
| SC 3 | 950 x 1500 x 1800 mm |
DOWNLOAD LEAFLET
VIEW USER MANUAL
REQUEST INFORMATION
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
