AUTOMATIC BAND SAW SETTING MACHINE
FOR NARROW BAND SAWS FOR FROM 10 TO 80 MM. (0,39” to 3,14”)
HIGHLIGHTS
- Sturdy construction and long life machine
- Low maintenance
- Easy to use: suitable for both professional to beginners workshop operators
- Left/Right or Left/Right/Straight tooth setting of the band saws.
- Also available in manual version.

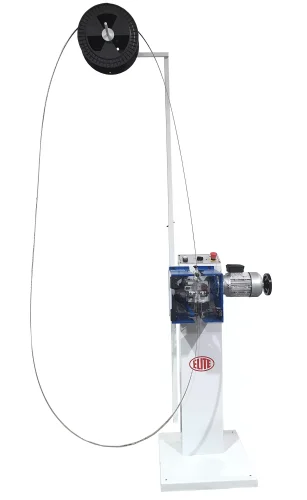

ELITE TR 3 AUTO. MACHINE BASIS.
The ELITE TR 3 AUTO is our automatic, economical, durable and low-maintenance setting machine.
For band saws with a width of 10 to 80 mm.
Also available in manual version.
ELITE TR 3. HOW IT WORKS
Operation of the TR 3 AUTO

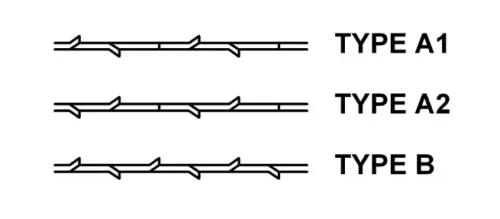

Setting type
ELITE TR 3. SPECIFICATIONS
| TECHNICAL DATA | ELITE TR 3 AUTO |
|---|---|
| Bandsaw Width | From 10 to 80 mm. (0.39" to 3,14") |
| Band saw thickness | From 0.5 to 1.2 mm. (0.02" to 0.047") |
| Tooth pitch | From 5 to 35 mm. (0.19" to 1.37") |
| Setting | Left-Right /Straight-Left-Right |
| Setting speed | 32 - 48 |
| Engine power | 1 x 0.18kW |
| Machine size | 650 x 600 x 2600 mm. |
| Net weight | 50 kg |
| AVAILABLE VERSIONS | ||
|---|---|---|
| Model | Packing Size | Packing Weight |
| TR 3 AUTO | 920 x 820 x 1560 mm. | 13 Kg. |
DOWNLOAD LEAFLET
VIEW USER MANUAL
REQUEST INFORMATION
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
