FULLY AUTOMATIC SWAGING MACHINE FOR BANDSAWS AND GANGSAWS.
HIGHLIGHTS
- LOW MAINTENANCE: Works with electric motors: Hydraulic free for trouble free maintenance
- EXCELLENT QUALITY PRICE RATIO

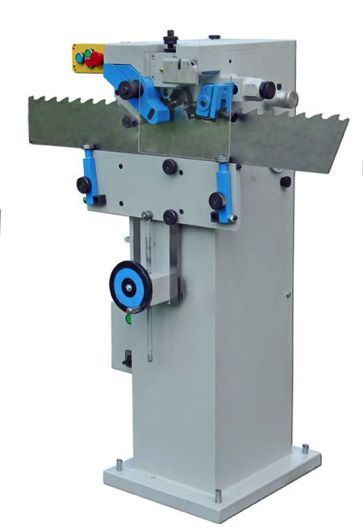

ELITE CH PRO. THE CONCEPT.
The ELITE model CH PRO is our automatic pressing and shaping machine. The process of swaging consist to press the face of the tooth in order to have a stronger teeth and also place some material to the sides of the teeth to ensure a cutting free process of the bandsaws. It is a better process instead of setting the teeth because it gives a longer cutting time of the bandsaw without complicated processes like stellite tipping.
ELITE CH PRO. HOW IT WORKS
The swaging process consist in two proceses: Swaging and Pressing (shaping) of the sides. Once the tooth is positioned automatically by means of the tooth pusher, a swaging eccentric with ø11, ø12 or ø13 mm. (user selectable) is placed in front of the bandsaw tooth. The saw tooth is then pressed against it by means of an anvil. By turning the swaging eccentric, the tooth material is compressed, densifying the steel thus giving more strength to the tooth. When the swaging process is finished, the swaging eccentric turns back to its original position and the pressing starts to give the same size to both flanks of the tooth.
ELITE CH PRO. SPECIFICATIONS
| TECHNICAL DATA | ELITE CH PRO |
|---|---|
| Band saw width | 70 - 200 mm. (2,75" - 7,87") |
| Tooth pitch | 0-50 mm. (0" - 1,97") |
| Pressing speed | 32 teeth / minute |
| Roller dimension | ø10,11,12,13 mm. |
| Power | 1,2 kW |
| Dimensions | 1280 x 550 x 1150 mm. |
| Weight | 335 kg. |
DOWNLOAD LEAFLET
MACHINES COMPARISONS AT A GLANCE
| MODEL | TOP GRINDING | TOOTH WELDING | SIDES GRINDING | SETTER | OTHER |
|---|---|---|---|---|---|
| SC PRO | 10 to 10 mm. bandsaws | - | - | - | - |
| EVG 350 | 40 to 350 mm. bandsaws | - | - | - | - |
| EVG 250 | 20 to 250 mm. bandsaws | - | - | - | - |
| SSC 350 | - | - | 40 to 350 mm. bandsaws | - | - |
| MMV 350 | - | 40 to 350 mm. bandsaws | - | - | - |
| SC 2 | 10 to 70 mm. triangular shape bandsaws | - | - | Optional: TR2 / TR3 mounted on SC 2 | - |
| SC 3 | 10 to 60 mm. triangular or curved shape bandsaws | - | - | No | Different cams for other tooth shapes are possible |
| LM PRO | - | - | - | - | Leveling + tensioning |
| CH PRO | - | - | - | - | Swaging |
| TR 5 | - | - | - | 20 to 120 mm. | - |
| TR 3 | - | - | - | 10 to 80 mm. | - |
| TR 2 | - | - | - | 10 to 45 mm. | - |
