1.FIRST STEPS

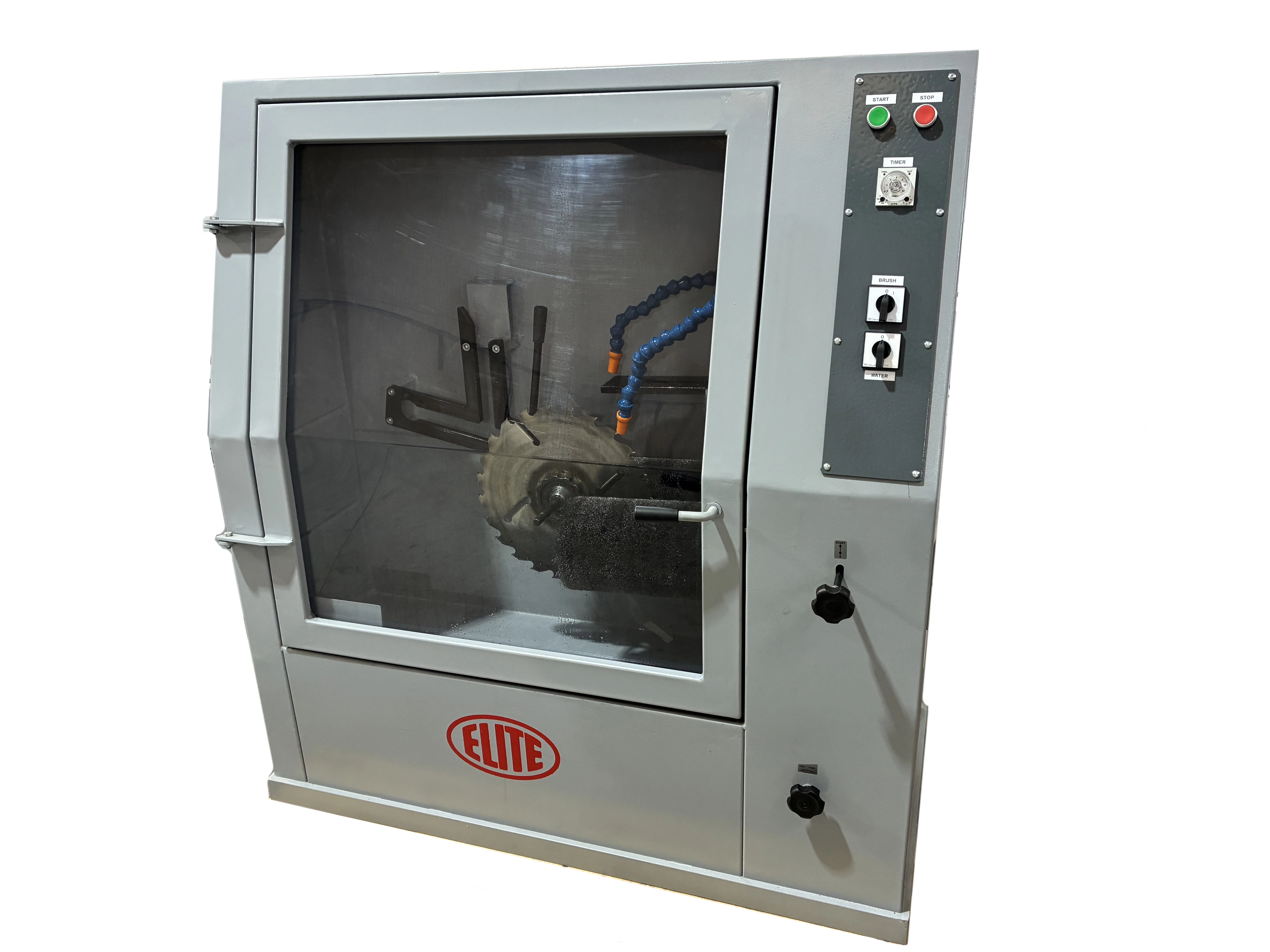

Congratulations on your purchase of the circular saw cleaning system, ELITE model BR 800.

The BR 800 model is our circular saw cleaning system using metal bristle brushes that clean the side of the saw blade via a motor. It is suitable for circular saws with tungsten carbide teeth, as well as HSS saws or circular blades. For saws with diameters from ø250 to ø800 mm. Equipped with a cooling system to select dry or wet cleaning, it also incorporates two additional bristle brushes for cleaning the back of the saw teeth.

You can view the product catalog at the following link: ELITE model BR 800

This manual introduces you to the main functions of the cleaning system in order to avoid risks to your health or that may cause a breakdown or premature wear of the machine.

In case of any doubt, please contact us or one of our authorized distributors.

**Informative Note: The use described in the manual of this cleaning system described therein may present some variations in use as our machinery is subject to possible construction modifications, depending on the incorporation of technological advances in our equipment.

2.SAFETY

2.1.Safety regulations

Carefully observe and apply the following safety rules, not respecting these rules may cause personal injury or damage to the machine itself.

The installation and maintenance of the machine described in this manual must be carried out only by operators who are familiar with its operation and have sufficient technical knowledge.

The ELITE BR 800 has been designed for the cleaning of circular saws with carbide teeth, excluding any other type of operation.

These warnings do not include all possible risks that improper use of the machine could cause. For this reason, the operator must proceed with prudence and observing the rules.

2.2.Use and storage of the instruction manual

This instruction manual must be read and understood by all personnel who come into contact with the machine.

This manual is for:

• Indicate the correct use of the machine according to the type of work to be carried out.
• Provide the necessary instructions for the transport, adjustment and maintenance of the machine.
• Facilitate the ordering of spare parts and information of risks.

Limits of use of the manual:
The machine is intended for professional use and therefore the experience of the operator is required and of vital importance.

Importance and conservation of the manual:
This manual must be considered part of the machine and must therefore be attached to it until the end of its use.

Additional information and clarifications:
The user, owner or maintenance person can contact the manufacturer to request any additional information on the use of the machine and possible modalities for maintenance and repair intervention.

Expiration of responsibility:
The manufacturer is considered exempt from any liability in the event of:

• Improper use of the machine
• Use of the machine by untrained persons
• Serious failures in scheduled maintenance
• Unauthorized interventions or modifications
• Use of non-original spare parts.

2.3.Declaration of conformity

The company hereby:
Elite Machines, SLU
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires

Declares that the product indicated below, based on its conception and construction, as well as the version put on the market by our company, complies with the mandatory basic health and safety requirements of the CE directive.

This declaration loses its validity in the event of unauthorized modifications to the product.

• Product name: ELITE model BR 800
• Product type: Cleaning system for circular saws
• Serial No.: __

EC Directive Competences:

• EC Machinery Directive (2006/42/EC)
• European directive on electromagnetic compatibility (2014/30/EU)
• The protection purposes of the CE low voltage directive (2006/95/CE) were fulfilled according to annex I, nr. 1.5.1 of the machinery directive 2006/42/EC

The technical documentation was compiled by legal representative of the documentation:

Sergi Valls Gramunt
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires

Date / manufacturer - Signature: __
Signatory data: Sergi Valls Gramunt, manager

3.TECHNICAL DATA

In the following information table, find the list of technical specifications of the sharpening machine described in this manual.

3.1 TECHNICAL REQUIREMENTS

4.TRANSPORT

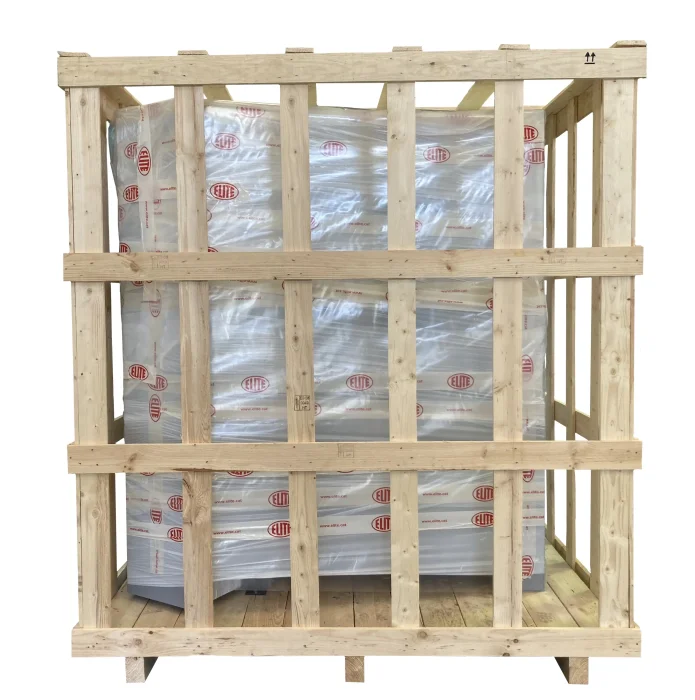

The ELITE BR 800 is delivered packed in a wooden crate.

During all transport and transfer, the machine must be kept in its original vertical position, any variation in this position may lead to the loss of the guarantee.

4.1.Instructions for unpacking and setting up

To lift or move the load, use a forklift with blades long enough to support the machine, taking into account the width and depth of the machine for the calculation of the weights to lift.

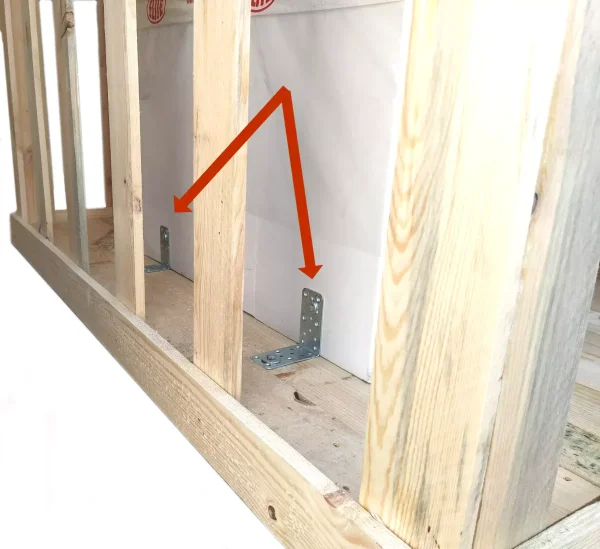

Once the packaging has been opened, remove the fixing stops from the feet of the machine

Remove protections before connecting the machine

Download detailed instructions for unpacking the machine here: Instructions for unpacking

5.INSTALLATION

5.1.Machine placement

Before any work make sure that the machine is well aligned and does not oscillate at any of its ends, in which case it must be wedged to avoid movements. For its correct level it is necessary to use a leveling tool. This check must be carried out both longitudinally and transversally.

Poorly leveling the machine can cause unwanted vibrations and premature wear of the linear guides.

Before connecting it, remove all packaging protections that the machine has for transport.

The machine should be placed on a concrete floor in a room with a sawdust extraction system. Around the machine there should be much enough space for storing the circular saw blades.

5.2.Electrical connection

The electrical connection of the machine must be carried out by qualified technical personnel only at the voltage indicated in the machine order / machine identification plate.
For any doubt about the voltage, consult the manufacturer before the connection.

Any claim for an incorrect connection will be out of warranty.

To connect the machine to the electricity , use the L1, L2, L3 and PE clips.

During the first starting of the machine, make sure that a sense of the rotations of the brushes is correct. The correct sense of the rotations of the brushes guarantees the correct sense of rotations of the pomp motor.

5.3. Conditions of a safe work

The machine should be placed in a big enough room to enable the operator(s) to access to the all elements of the machine easy. Around the machine there should be much enough space for storing the circular saw blades.

IMPORTANT REQUIREMENTS:

1. Check whether the protection cover from access to the brushes is correctly positioned before starting work.
2. The operator’s clothes should be strictly adapted to the character of work.
3. Operator should wear the leather protective gloves when changing the brushes and saw blades.
4. It is not allowed to store the large amount of the saw blades around the cleaning machine.
5. Turn off the main power during the break at work.
6. Any adjustments, repairs and renovations can be made only by the persons with appropriate qualifications.
7. The operator should also obey the Occupational Safety and Health rules strictly and take care of general cleanliness and good organization of his/her workplace.

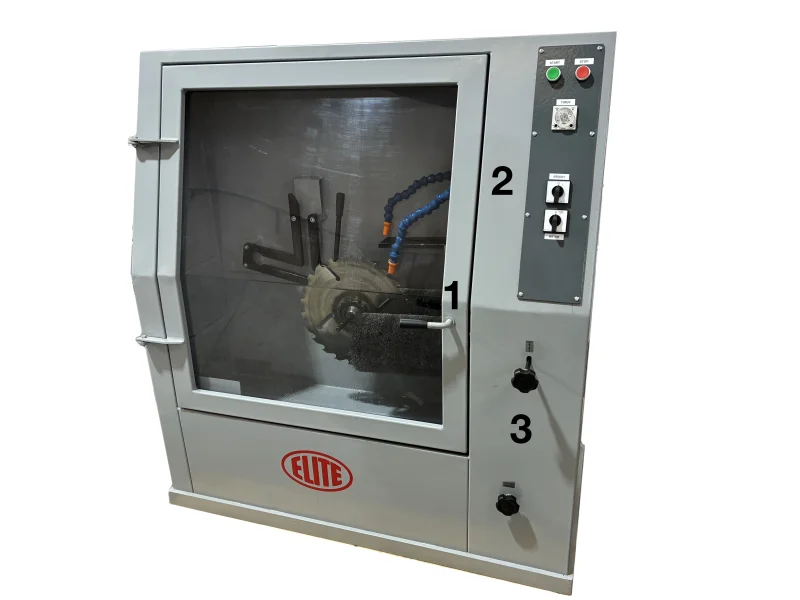

5.4.Main components of the machine BR 800

1. Machine operation door.
2. Machine control panel.
3. Full enclosure.

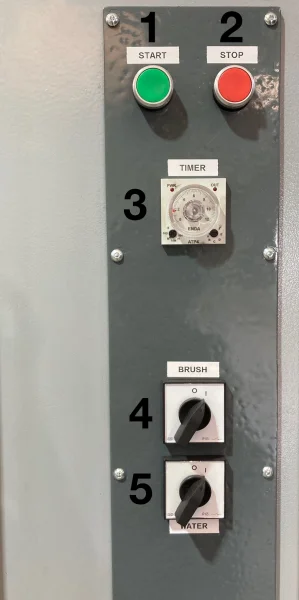

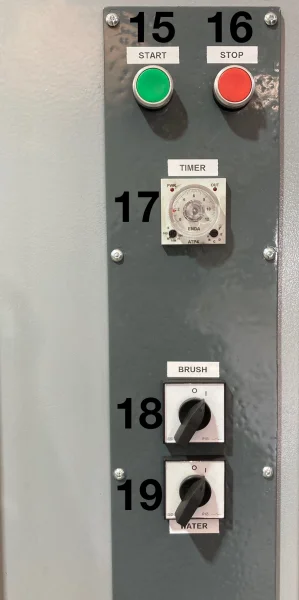

5.5.Control panel

1. START button.
2. STOP button.
3. Cleaning time programer
4. ON/OFF Brushes button
5. ON/OFF Pump button

6.STARTING UP

In this section we show you to operate the BR 800 in order to work.

NOTE: The data that appears in the different images are by way of example, each type of tool has its recommended data and a skilled operator must know them.

1. The blades do not require any preparation (lubrication, humidification etc.) before cleaning.
2. The blades can be cleaned just before the sharpening process and the cleaning machine can be operated by the sharpening machine operator what increases the productivity of working time.

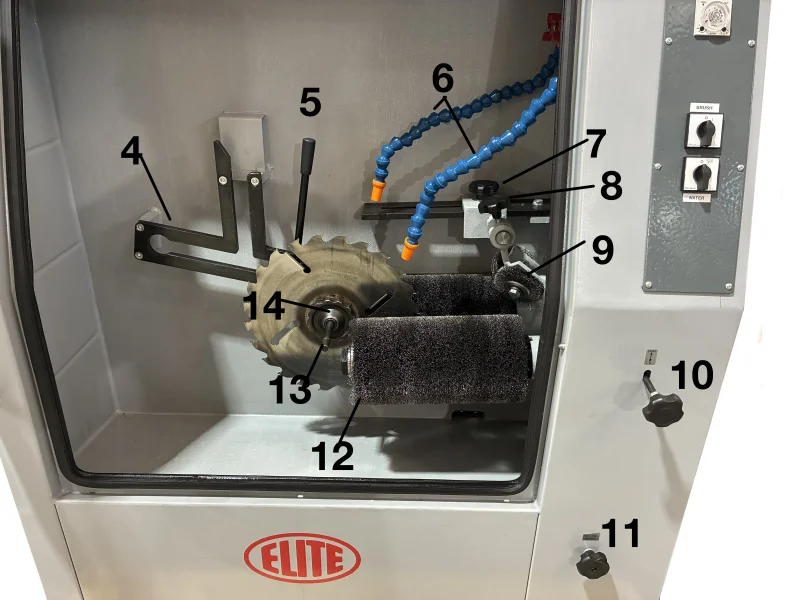

3. It is recommended to install the saw blade on the hub (13) according to the direction showing on the machine structure drawing (look at the next page). However the installation in the opposite direction is permitted and is insignificant mistake.
4. The hub (13) can fit the saw blades with the hole diameters from Ø 30 to 90 mm.
5. To install the saw blades in the machine, insert them between the brushes with using the wrench which is standard equipment of the machine. After adjusting the saw blade position with using the wrench, turn the axle(21) to the right, then remove the wrench.
6. For installing the saw blades with diameter up to 600 mm in the machine, use the axle (21) in the bar(12). The saw blade with diameter above 600 mm are removed from the machine and installed in together with the axle(21).
7. The installation wrench is also the extension of the axle(21) what facilitates the installation and remove of the saw blades with diameter above 600 mm.
8. Set the cleaning time depending on dirtiness degree (in practice usually 3 minutes are enough).
9. The dirt saw blades stored longer need to be cleaned longer.
10. Position the saw blades in the machine so that the brushes occupies as much place as possible on the saw blades’ surface.
11. When cleaning the recurrent saw blades, use the buffer brushes(11) which will be performing the positioning function of the saw blade installation.
12. The buffer brushes(11) perform also the brake function for the saw blade rotation. Thanks to that the main brushes can work more effectively.
13. Attention: If the saw blade is too close to the buffer brushes(11), it can be completely blocked.
14. The oil-water emulsion should be mixed in relation of 1/50 (2% of oil). The emulsion streams should be directed to the saw blade surface just at the contact with the brushes.
15. Use the emulsion oil of any brand using in metalworking.
16. The BR 800 machine does not guarantee that the spaces between the teeth will be completely cleaned but the dirt residues between these spaces do not influence on the quality of the saw blade work.

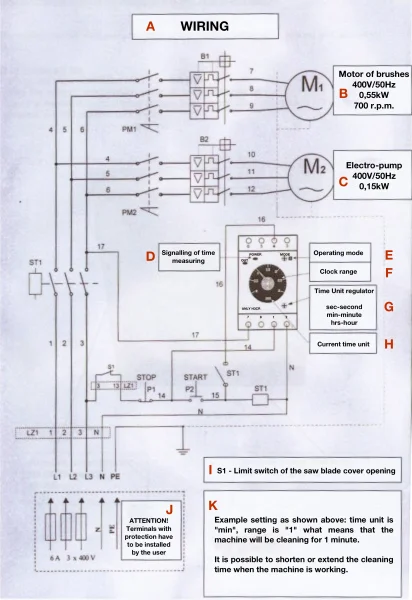

7.WIRING

8.MAINTENANCE

8.1.Preventive maintenance

The maintenance of the ELITE model BR 800 is very simple but at the same time important. The correct maintenance and lubrication influence on its long and failure-free work.

It consists of the following:

• Oil the saw blade installation axle (21) twice a day
• Clean the tank (15) regularly depending on its dirtiness degree
• Pour the engine oil in the sleeves of the spindles everty 160 working hours - 2 x 50 m3. Unscrew the M12 plugs to pour the oil.

Use the equipment only in dry environments. The temperature must be between 5 and 40ºC. A relative humidity greater than 90%, as well as a saline environment, would cause premature corrosion of the machine.

9.ACCESSORIES AND CONSUMABLES

10.WARRANTY

All our machines are tested before being shipped. However, there can always be defects that are not observable at first sight.

Our machines are guaranteed against manufacturing or material defects under normal use and maintenance conditions.
The period of this guarantee is 12 months from the date of purchase and consists of the replacement of defective material.

The guarantee will be automatically canceled in the event of a modification outside our company or in manifest cases of misuse of the machine.

The guarantee does not include parts subject to normal wear due to use such as skids, lubrication cartridge, abrasives, etc.
